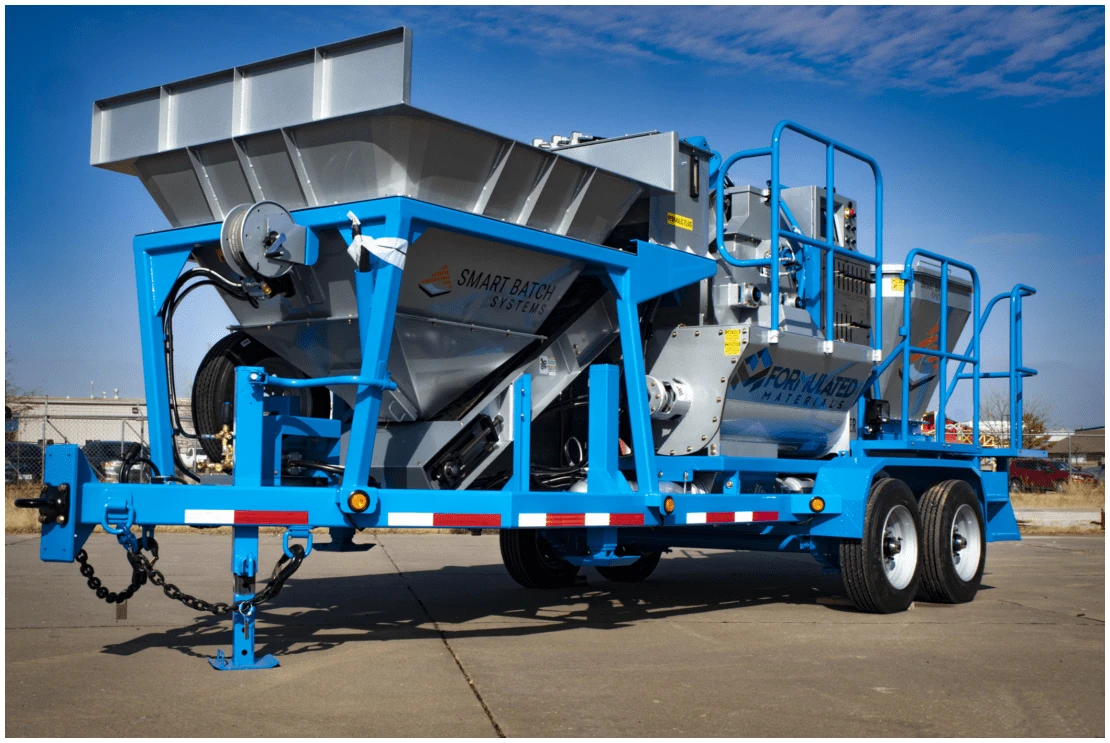

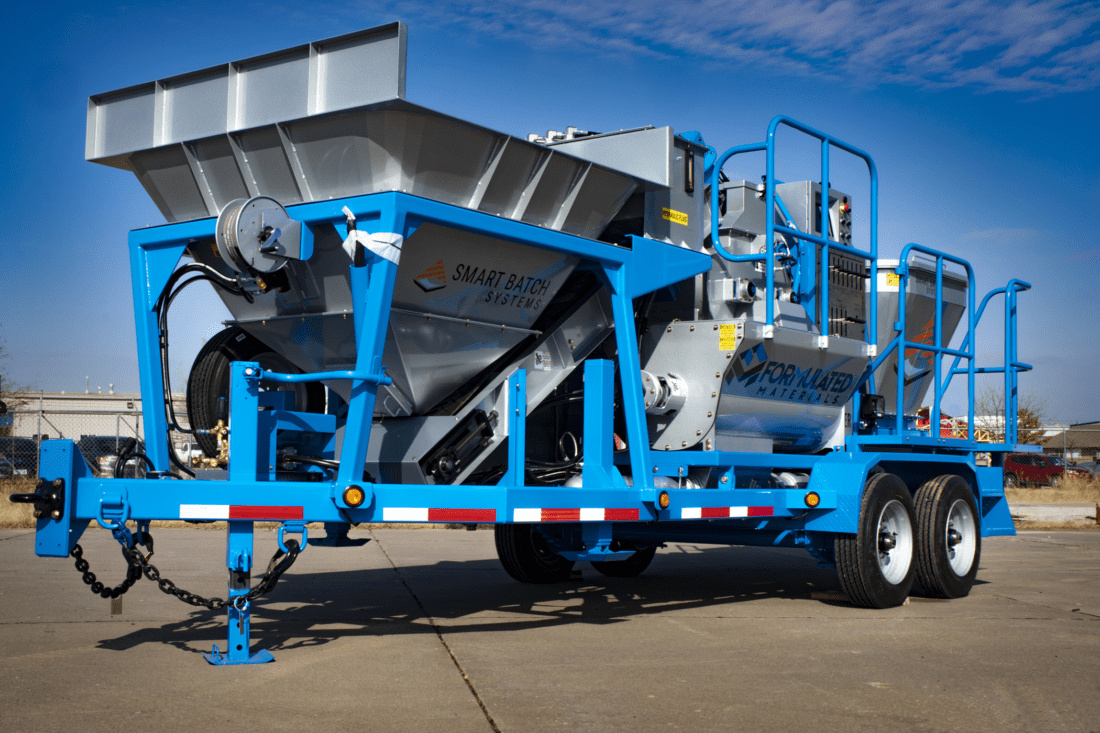

Smart Batch® GC-1 Automated Aggregate Batch Mixer

Speed production, increase productivity and deliver accuracy that can be proven with detailed reporting by utilizing automation and bulk materials.

Smart Batch machines are unique to every jobsite that they can be found on. There are other mixer/pumps on the market but no offer the brute power mixed with precision that the Smart Batch GC1 offers.

Description

Mixing and pumping a half ton batch every 75 seconds, GC1 ensures each batch is meticulously weighed and portioned to the perfect consistency. The brains of the Smart Batch GC1 batch mixer capture the details of each batch and record weights, measures and mix duration. The details of the day’s reports are available on the cloud to be analyzed by the pump owner. Smart Batch machines are also cleaner and safer to work around. The Smart Batch GC1 batch mixer is fed by a skid steer with supersacks reducing the airborne dust on the jobsite by 94%. Having a skid steer to feed sand and supersacks into the Smart Batch machine reduces the labor significantly that is needed to pour 40,000 sqft day after day at 3/4″ thick

Specifications

Trailer:

  • Weight: 18000 lbs.
  • Length: 25’
  • Width: 8’6”
  • Height: 9’9”
  • Tongue Weight: 1800 – 2000 lbs.

Frame:

  • 1/4” Rectangular Tubing for
  • Increased Durability
  • Leaf-Spring Suspension
  • Modular Components are Removable for Service

Large Hopper:

  • 51 ft3 Capacity
  • Delivers 7 batches for a typical mix design

Diesel Engine:

  • Horsepower: 110HP, Tier 4 Final
  • Fuel Tank Size: 48 GAL Standard / 60 GAL Extended
  • Approximate Run Time: 7-10 Hours Standard / 10-13 Hours Extended
  • Def Tank Size: 5 GAL
  • DEF Tank Run Time: 20-60 Hours (Subject to engine load and exhaust temp)

Manifold Hydraulic Valve:

  • Allows easy access to individual sections for maintenance
  • Does not require manifold disassembly for service of components
