Description

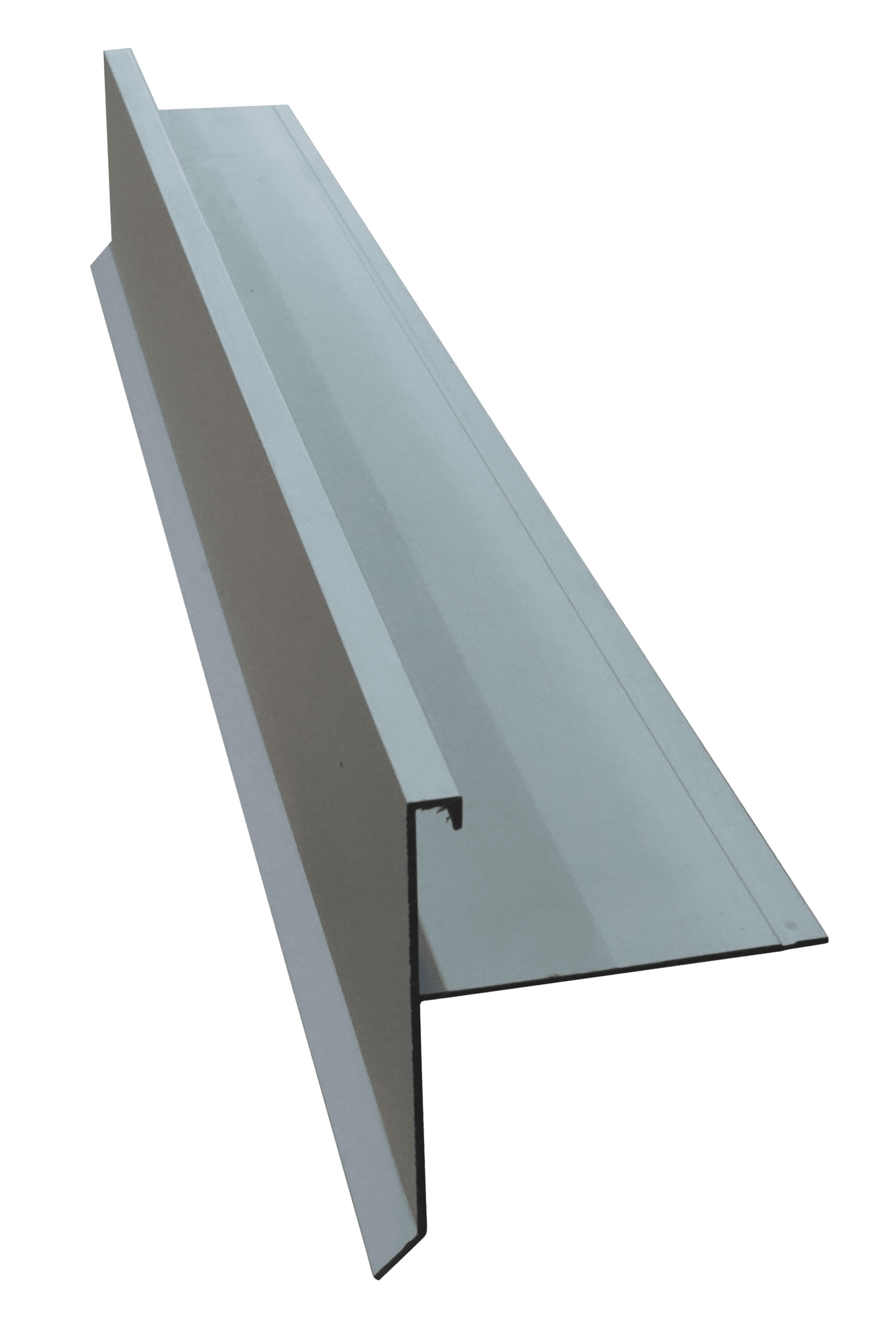

Premium quality, 6063 aluminum alloy Termination Bar approved for use with all Elevation® Waterproofing Systems. The product is manufactured to our specifications resulting in greater strength and consistency of dimension, gauge and finish when compared to many regionally available products.
Properly installed, Elevation® Termination Bar (T-Bar) provides a pour stop for the wear layer on a water-proofed balcony and maintains a weep system to ensure proper removal of moisture trapped beneath the wear layer.
Features/Benefits
- Higher quality, better finish and increased durability designed specifically for use in balcony applications
- Increased strength reduces the risk of damage during transport and before application of wear layer
- Consistent dimensions assure proper wear layer pour depth
- Wider nail flange eases installation
- Available in anodized or milled finish
- Available sizes are 1-1/2″, 2″, 2.5″ and 3″ inches at 10′ and 12′ lengths – see packaging tab
Packaging
10′ and 12′ lengths, packed in bundles
- 1-1/2″ T-Bar: 80 per bundle
- 2″, 2.5″ and 3″ T-Bar: 40 per bundle
- Available finishes: Mill Finish, Prime Coat, and Anodized (Clear, Bronze, Black)
Mill Finish
#10326-10 1-1/2″ T-Bar Mill Finish 10′
#10326-12 1-1/2″ T-Bar Mill Finish 12′
#10330-10 2″ T-Bar Mill Finish 10′
#10330-12 2″ T-Bar Mill Finish 12′
#10332-10 2.5″ T-Bar Mill Finish 10′
#10332-12 2.5″ T-Bar Mill Finish 12′
#10334-10 3″ T-Bar Mill Finish 10′
#10334-12 3″ T-Bar Mill Finish 12′
Prime Coat
#10388-10 1-1/2″ T-Bar Prime Coat 10′
#10388-12 1-1/2″ T-Bar Prime Coat 12′
#10389-10 2″ T-Bar Prime Coat 10′
#10389-12 2″ T-Bar Prime Coat 12′
#10371-10 2.5″ T-Bar Prime Coat 10′
#10371-12 2.5″ T-Bar Prime Coat 12′
#10390-10 3″ T-Bar Prime Coat 10′
#10390-12 3″ T-Bar Prime Coat 12′
Clear Anodized
#10327-10 1-1/2″ T-Bar Clear Anodized 10′
#10327-12 1-1/2″ T-Bar Clear Anodized 12′
#10331-10 2″ T-Bar Clear Anodized 10′
#10331-12 2″ T-Bar Clear Anodized 12′
#10333-10 2.5″ T-Bar Clear Anodized 10′
#10333-12 2.5″ T-Bar Clear Anodized 12′
#10335-10 3″ T-Bar Clear Anodized 10′
#10335-12 3″ T-Bar Clear Anodized 12′
Bronze Anodized
#10336-10 1-1/2″ T-Bar Bronze Anodized 10′
#10336-12 1-1/2″ T-Bar Bronze Anodized 12′
#10338-10 2″ T-Bar Bronze Anodized 10′
#10338-12 2″ T-Bar Bronze Anodized 12′
#10340-10 2.5″ T-Bar Bronze Anodized 10′
#10340-12 2.5″ T-Bar Bronze Anodized 12′
#10342-10 3″ T-Bar Bronze Anodized 10′
#10342-12 3″ T-Bar Bronze Anodized 12′
Black Anodized
#10337-10 1-1/2″ T-Bar Black Anodized 10′
#10337-12 1-1/2″ T-Bar Black Anodized 12′
#10339-10 2″ T-Bar Black Anodized 10′
#10339-12 2″ T-Bar Black Anodized 12′
#10341-10 2.5″ T-Bar Black Anodized 10′
#10341-12 2.5″ T-Bar Black Anodized 12′
#10343-10 3″ T-Bar Black Anodized 10′
#10343-12 3″ T-Bar Black Anodized 12′
