Elevation®
The Elevation ONE Balcony Waterproofing System has been developed from the deck up to be the most reliable, most effective, most consistent wood-framed balcony waterproofing system available.
-
Elevation®Elevation® Base Flashing
Roll-formed 26-gauge galvanized steel base flashing installed along perimeter walls of balcony assemblies. Provides a flat, rigid, and uninterrupted substrate for the Elevation S60 waterproof membrane to bond to, compensating for framing gaps, inconsistencies, and omissions at the base of framed walls. Waterproofing performance is no longer dependent on perfect field conditions.
-
Sheet Waterproofing SystemElevation® S60 Membrane
ELEVATION® S60 is a sheet waterproofing membrane engineered specifically for use with the ELEVATION® ONE Waterproofing System.
-
Sheet Waterproofing System

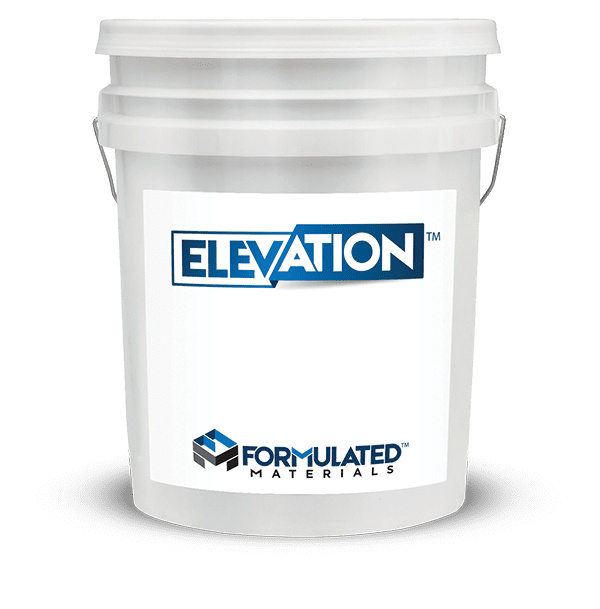

Elevation® SP1 Primer
ELEVATION® SP1 Waterproofing Primer is a water-based, pressure sensitive primer for use with S60 Sheet waterproof membrane. SP1 is suitable for use for application to concrete, plywood and polyisocyanurate roofing insulation.
-
Sheet Waterproofing System
Elevation® SM2 Lap Sealant
Elevation® SM2 Urethane Waterproofing is a multi-purpose, resilient joint sealant that combines economy and high performance. It is ideal for a wide range of applications where joint movement requires compression and extension in excess of 25%. SM2 is a moisture-curing polyether sealant that is effective in damp, dry or cold climates. It is free of solvents and isocyanates.
-
Elevation®

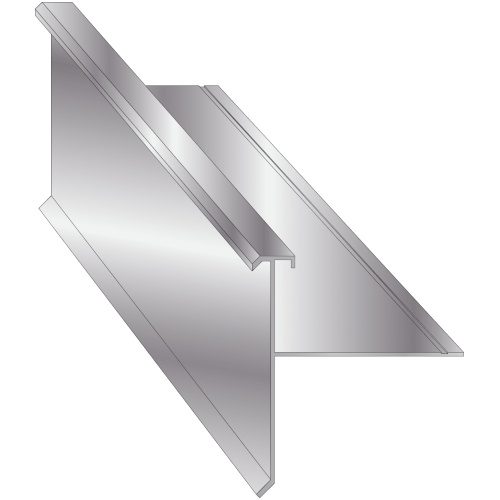

Elevation® 2X Drip Edge T-Bar
Properly installed, the 2X Drip Edge T-Bar provides advanced pour stop functionality with breakthrough secondary drip edge technology that actively drives moisture away from the bar face, preventing alkaline staining and long-term discoloration while maintaining superior weep system performance. The 2X Drip Edge T-Bar is precision-engineered to our enhanced specifications, delivering exceptional strength, dimensional consistency, and finish protection that significantly outperforms standard termination bars and regional alternatives.
-
Waterproofing Components
Elevation® DM2 Drainage Mat
DM2 Elite is a high compression resistant cuspated HDPE design bonded to a 125g non-woven filter fabric. DM2 Elite has a continuous sheet of polyolefin plastic providing an additional waterproof/protective layer over the Elevation Waterproofing System.
-
Balcony Embed System
Elevation® T-Bar
Properly installed, Elevation® Termination Bar (T-Bar) provides a pour stop for the wear layer on a waterproofed balcony and maintains a weep system to ensure proper removal of moisture trapped beneath the wear layer. The Elevation® Termination Bar is manufactured to our specifications resulting in greater strength and consistency of dimension, gauge and finish when compared to many regionally available products.
-
Waterproofing Components
Elevation® T-Guard – Protective T-Bar Tape
T-Guard Tape is designed to provide superior protection for T-Bars during painting, spraying, and other finishing processes. It features a UV-stabilized adhesive that prevents melting to surfaces and allows for easy removal after application. T-Guard Tape is 4.5” wide to complete cover most T-Bars. It maintains the original finish and prevents contamination and discoloration throughout the project. It’s manufactured with a special adhesive which is easy to apply, adheres well, and is easy to remove without residue.
-
Waterproofing Components
Elevation® Fabric Flashing Tape
Elevation® Fabric Flashing Tape is a high-performance, flexible, and durable waterproofing tape designed to seal joints, penetrations, and transitions in waterproofing applications. Its adaptable nature allows it to conform tightly to irregular surfaces, ensuring a secure and lasting seal.
-
Waterproofing Components
Elevation® Spacer Shim
Made of EPDM rubber, providing a constant weep system gap between the drip edge and T-bar. The rubber properties provide an enhanced seal around fastening penetrations.
-
Waterproofing Components
Elevation® TTP Flat
T-Bar Termination Pockets are the starting point of all ELEVATION® Waterproofing Systems. Made of 100% welded heavy gauge aluminum flashing for durability and long term exposure. TTP’s eliminate relying on sealants and layers of membrane to seal the joint where the T-bar and Drip Edge flashing meet the building.
-
Waterproofing Components
Elevation® TTP Standard
T-Bar Termination Pockets are the starting point of all ELEVATION® Waterproofing Systems. Made of 100% welded heavy gauge aluminum flashing for durability and long term exposure. TTP’s eliminate relying on sealants and layers of membrane to seal the joint where the T-bar and Drip Edge flashing meet the building.
-
Waterproofing Components

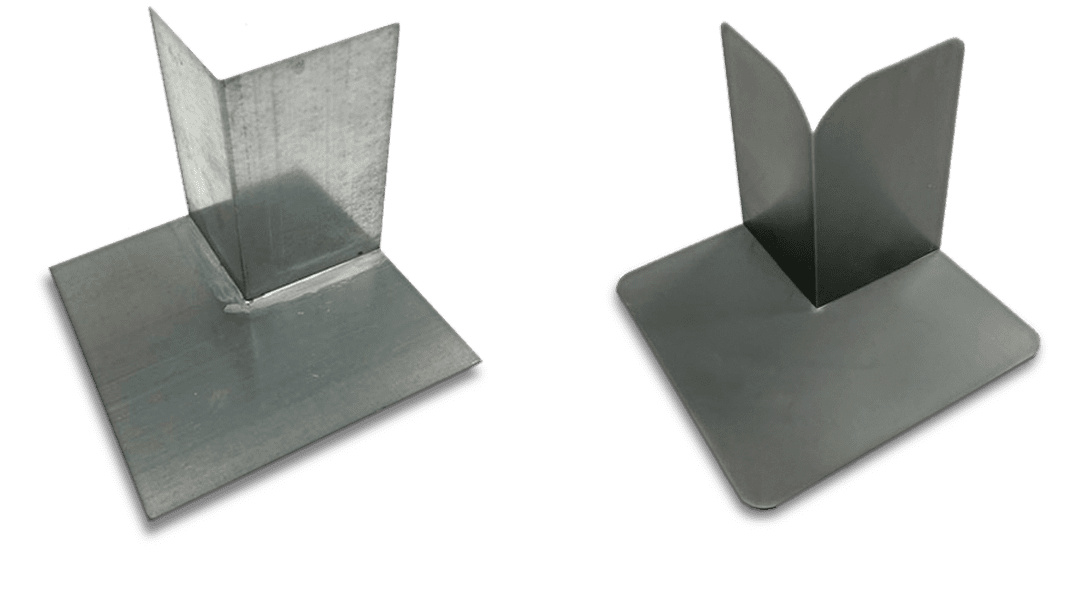

Elevation® Combo Corners
Elevation® Combo Corners Flashing Corners are Galvanized or Poly corners designed to provide flashing support at outside corners and door opening, while providing a smooth clean surface for proper S60 membrane adhesion at corners.
-
Balcony Embed System
Elevation® Railing Support Embed Pan
Designed to deliver a fast, reliable, worry-free solution for the waterproofing of balcony rail post embedded plates. Constructed of durable ABS, designed as a flashing pan that surrounds the embedded plate with a three lip system.
-
Waterproofing Components
Elevation® Elevation Railing Support Plate
ELEVATION® RSE (Railing Embed Support) rail mounting plate provides a mounting plate for railing systems to weld to once the finished concrete is installed. Due to the offset top plate and post, you lose less square footage of the balcony.
-
Waterproofing Components
Elevation® FT Tape
Elevation® FT Tape waterproofing tape is a pressure sensitive tape recommended for use during flood testing of installed Elevation® Waterproofing Systems. The flashing tape is manufactured with a nominal 2 mil aluminum foil backing and a high-performance rubber adhesive.
-
Balcony Embed System
Elevation® Railing Support Pan Sealant
Seamless and joint free waterproofing system created from a single component, liquid applied, coal tar free, urethane/polyurea roofing and waterproofing membrane system for vertical and horizontal surfaces.
