Description

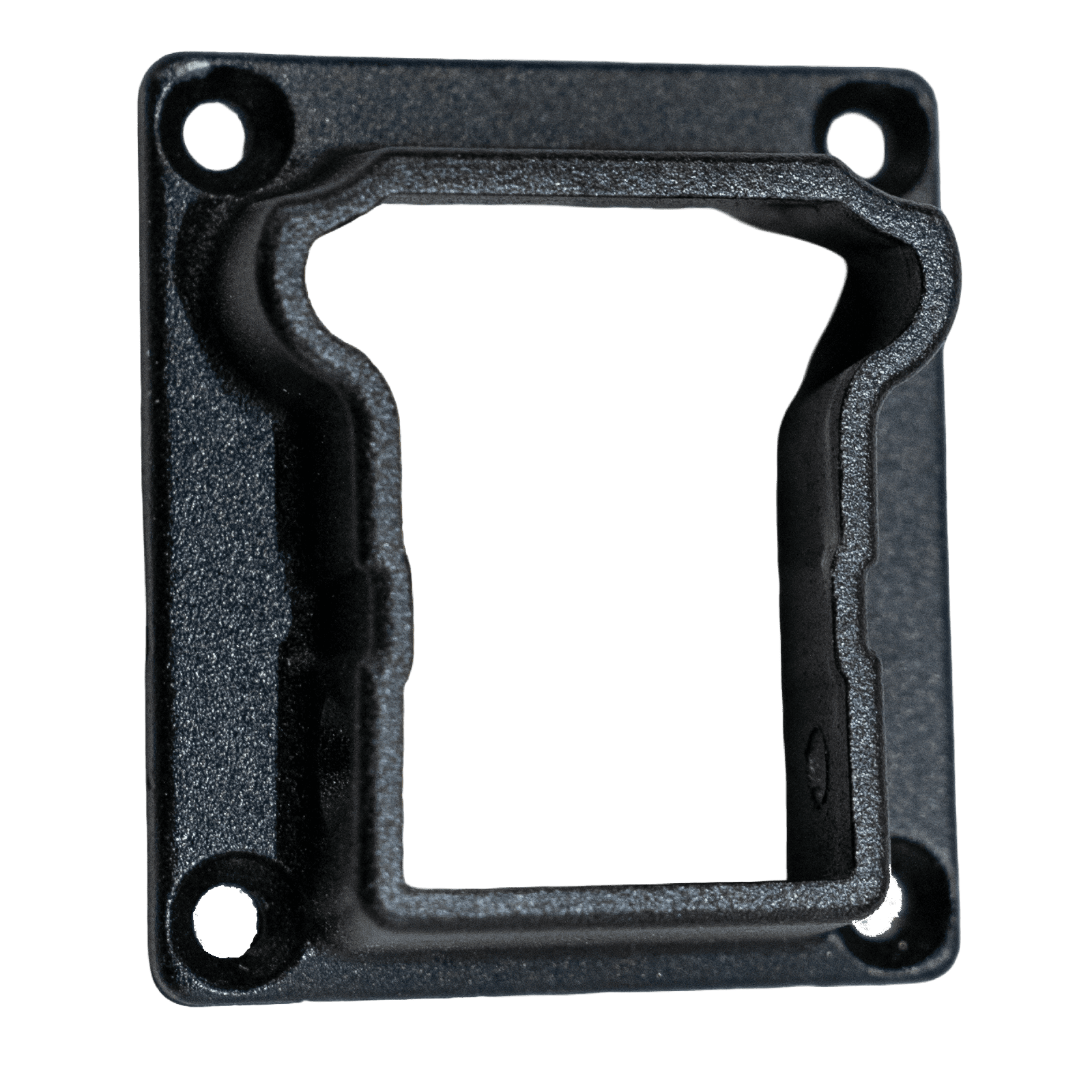

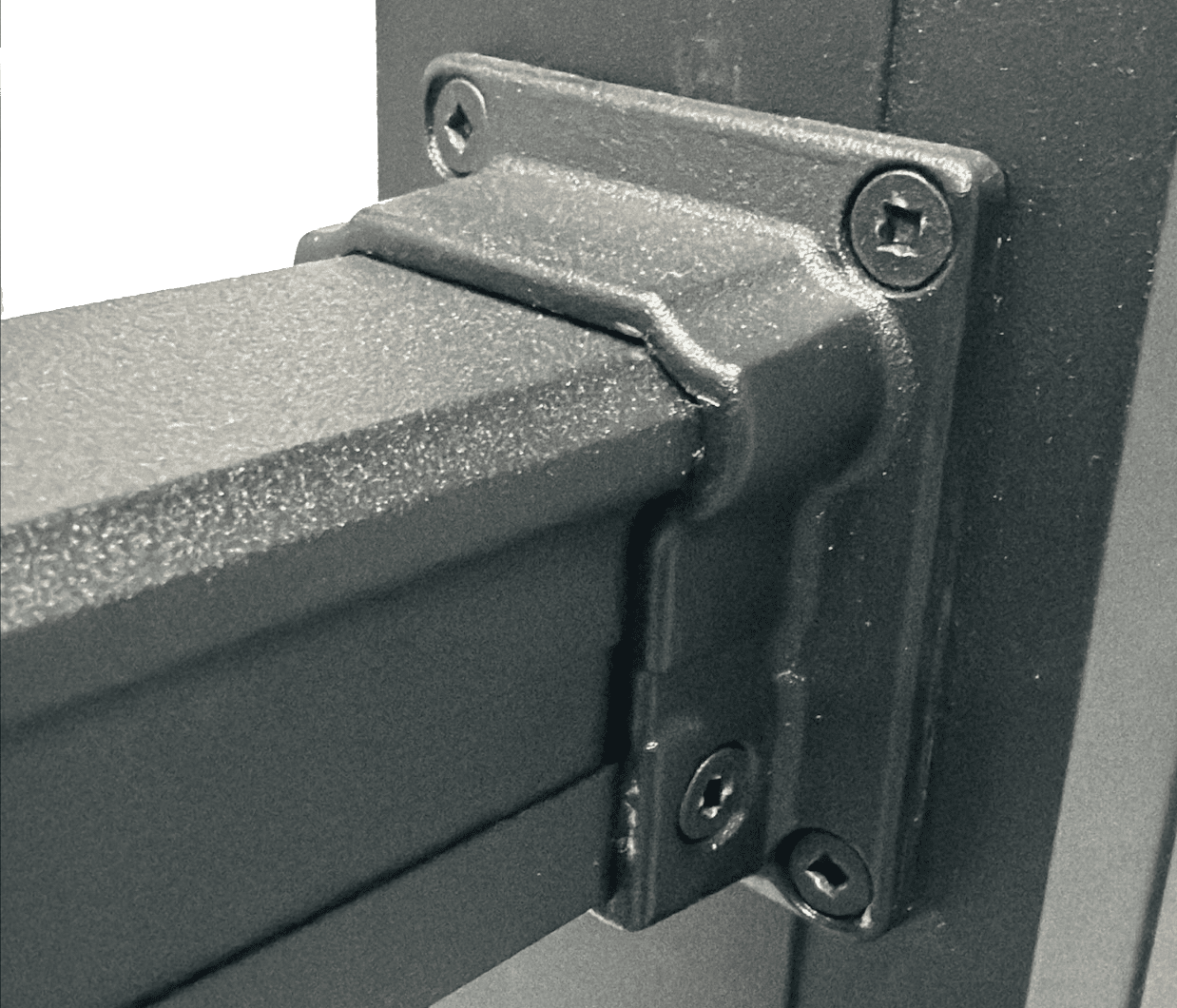

The Integrated Railing Top Rail Level Bracket is a cast 383 aluminum socket bracket contoured to the shape of the top rail profile. The bracket connects the top rail to the railing post and allows for leveling adjustments on sloped decks. Brackets are fastened to the post with four #10-16 x 3/4″ (0.136″ minor diameter) self-drilling countersunk head screws and to the rail with two screws of the same type.
Key details include Cast 383 aluminum socket bracket contoured to top rail profile; Allows for leveling adjustment on sloped decks; Fastened with #10-16 x 3/4″ self-drilling countersunk head screws (4 to post, 2 to rail); AAMA 2604 powder-coated finish to match system components.
Per the TDS, third-party testing supports the published performance information. Achieved 2.5x design load without failure at rail-to-bracket connection (Intertek Report P2566.01-119-19 R0).
