One aluminum railing line built for drip-through decks and waterproofed concrete balconies. Direct Mount or Stanchion Mount keeps mounting details consistent across the entire project, even when jobsite requirements vary.
The Integrated Railing 5′ Bottom Rail is a powder-coated extruded 6063-T6 aluminum rail section designed to span between posts at the bottom of the Integrated Railing System.
The Integrated Railing 6′ Bottom Rail is a powder-coated extruded 6063-T6 aluminum rail section.

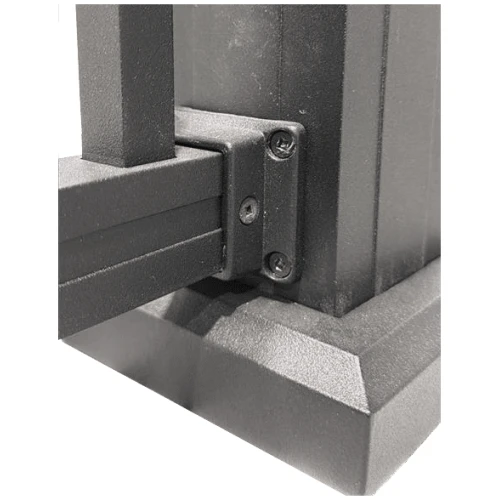

The Integrated Railing Bottom Rail Level Bracket is a cast 383 aluminum socket bracket contoured to the shape of the bottom rail profile.
The Integrated Railing Top Rail Level Bracket is a cast 383 aluminum socket bracket contoured to the shape of the top rail profile.
The Integrated Railing Leveling Shim is a component designed to assist in leveling the railing post base on sloped or uneven deck surfaces.
The Integrated Railing 3/4″ x 33″ Picket (baluster) is a powder-coated extruded 6063-T6 aluminum baluster with 0.

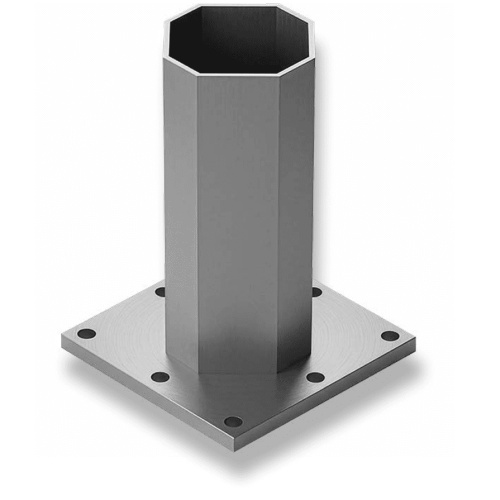

The Integrated Railing Stanchion is an anchor component designed to be secured to the structural substrate and then encased in a concrete topping during the pour phase of construction.

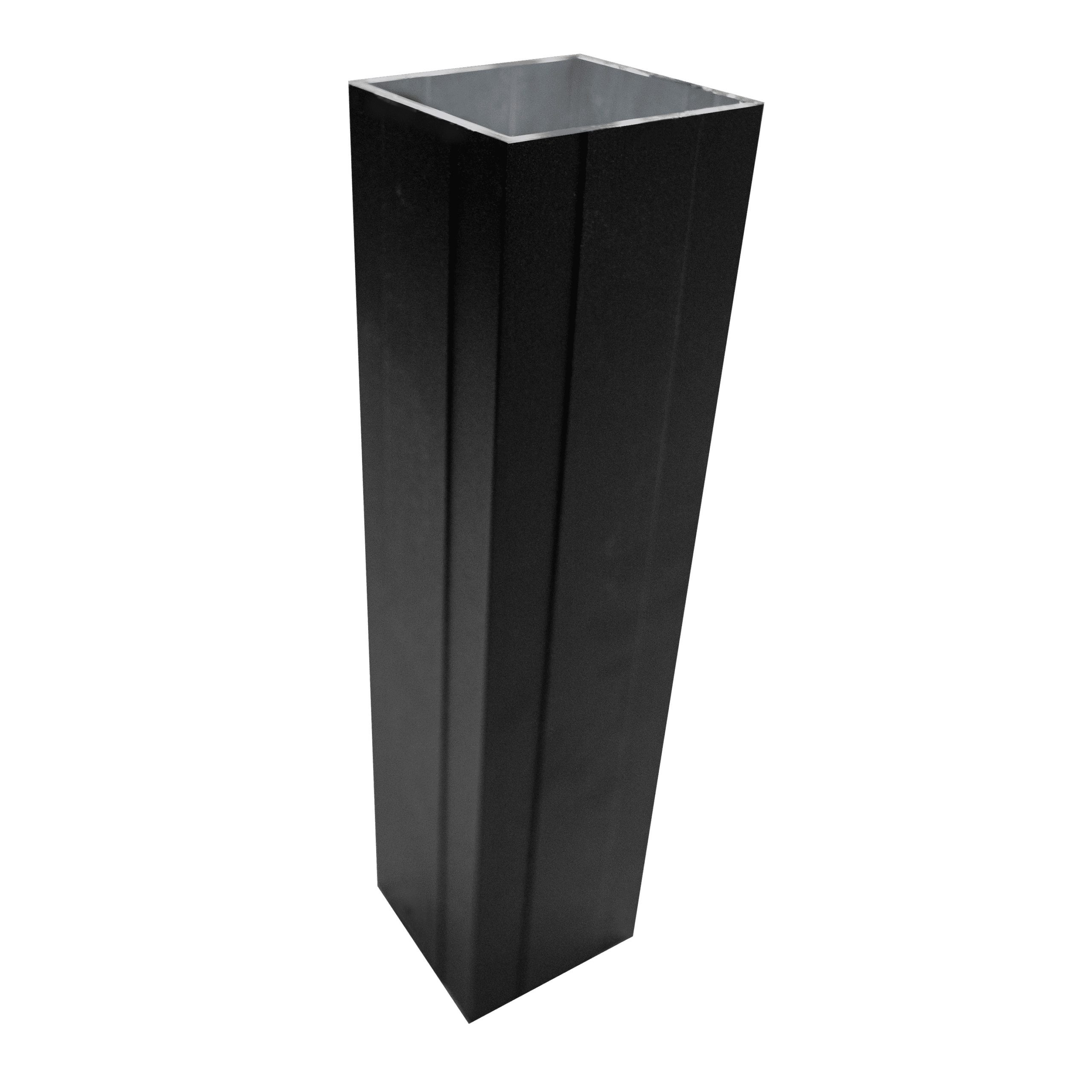

The Integrated Railing Post 3 1/2″ (Stanchion Mount) is a powder-coated extruded 6063-T6 aluminum flangeless post designed for installation over a pre-installed Integrated Stanchion.

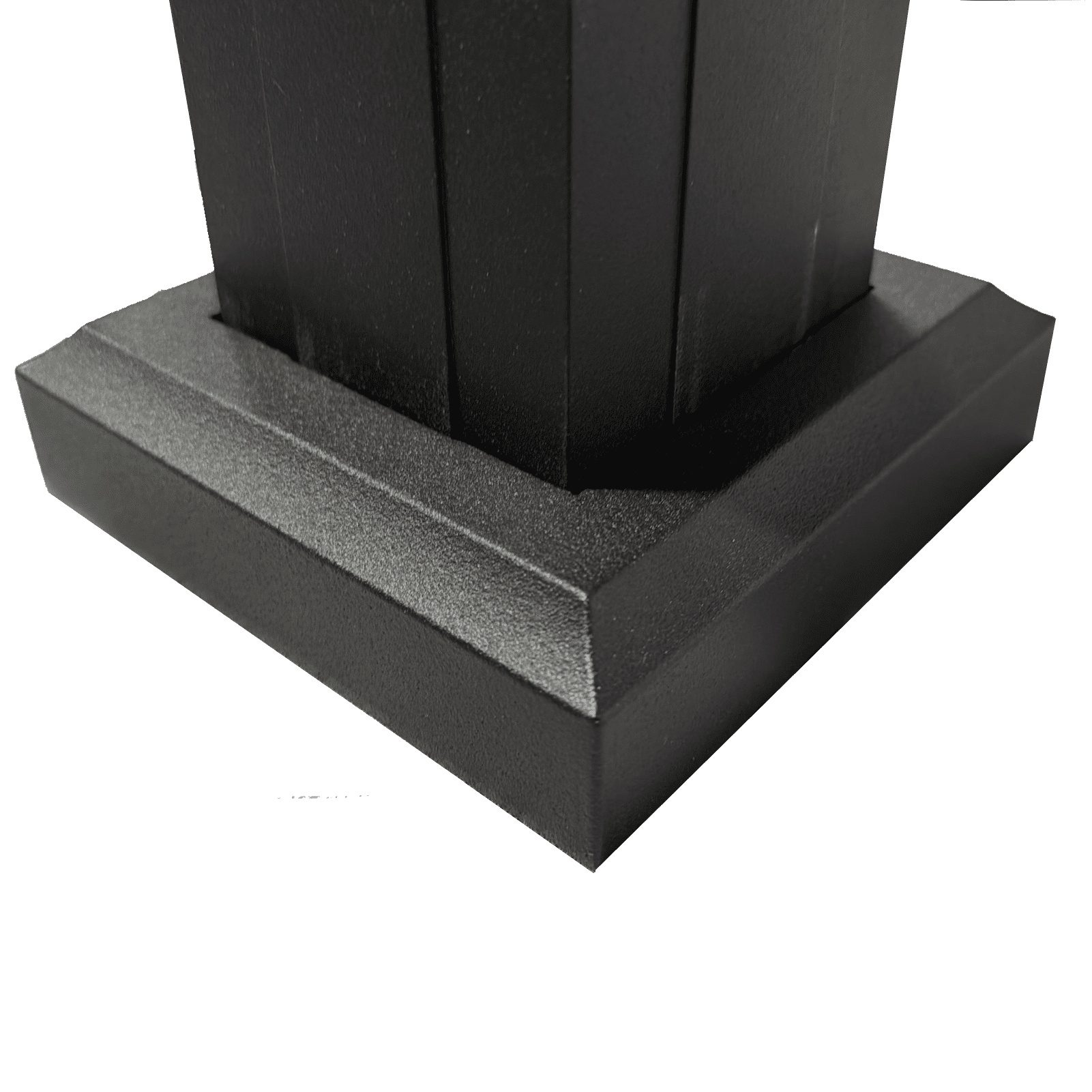

The Integrated Railing Trim Base (post skirt) is a two-piece powder-coated cover designed to conceal the base flange and fasteners of surface-mounted Integrated Railing Posts.
The Integrated Railing Post 3 1/2″ (With Flange) is a powder-coated extruded 6063-T6 aluminum post designed for direct surface-mount applications within the Integrated Railing System.
The Integrated 5′ Top Rail is a powder-coated extruded 6063-T6 aluminum rail section designed to span between posts at the top of the Integrated Railing System.
The Integrated 6′ Top Rail is a powder-coated extruded 6063-T6 aluminum rail section designed to span between posts at the top of the Integrated Railing System.
The Integrated Railing Post Cap is a powder-coated cap designed to finish the top of the Integrated 3 1/2″ Railing Post.
