Description

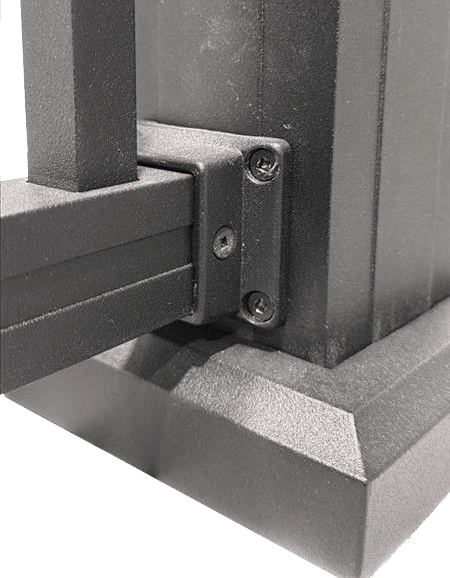

The Integrated Railing Bottom Rail Level Bracket is a cast 383 aluminum socket bracket contoured to the shape of the bottom rail profile. The bracket connects the bottom rail to the railing post and allows for leveling adjustments on sloped decks. Brackets are fastened to the post with four #10-16 x 3/4″ self-drilling countersunk head screws and to the rail with two screws of the same type.
Key details include Cast 383 aluminum socket bracket contoured to bottom rail profile; Allows for leveling adjustment on sloped decks; Fastened with #10-16 x 3/4″ self-drilling countersunk head screws (4 to post, 2 to rail); AAMA 2604 powder-coated finish to match system components.
Per the TDS, third-party testing supports the published performance information. Achieved 2.5x design load without failure at rail-to-bracket connection (Intertek Report P2566.01-119-19 R0).
